Stamping tools manufacture
Tool – Manual operating forming, piercing tool
Tool size – 2100 x 1100 x 580mm
3 pcs of Tools on one common plate

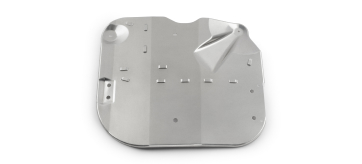

Material – Aluminum 5754 – H114
Thickness – 1.2 mm
Part dimensions– 630mm x 554mm

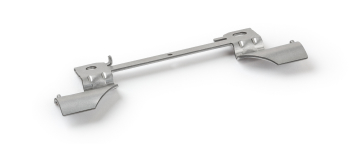

Material – DX53D + Z140
Thickness – 2 mm
Tool – Progressive tool L+R,
Tool size – 1600 x 1000 x 520mm

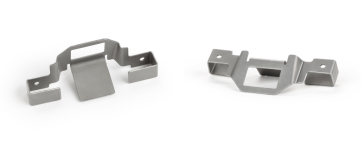

Material – S355
Thickness – 1.5 mm
Tool – Progressive tool
Tool size – 1600 x 1000 x 600mm

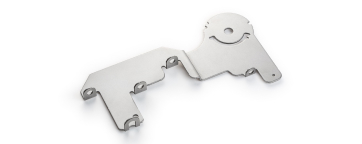

Material – DC01
Thickness – 3 mm
Tool – Progressive tool,
Tool size – 1600 x 850 x 520mm

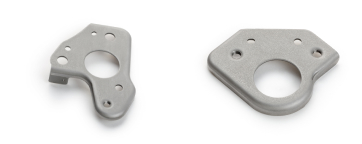

Material – S355MC
Thickness – 3 mm
Tool – Progressive tool 1+1 parts in tool
Tool size – 2350 x 1140 x 650mm
PRONIC thread system in tool

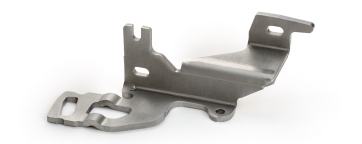

Material – DD11
Thickness – 6 mm
Tool – Progressive tool,
Tool size – 2300 x 1100 x 900mm
CAM trimming + piercing in tool

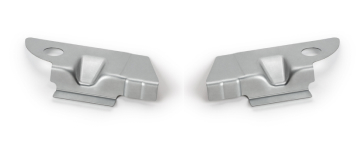

Material – CR340LA
Thickness – 1,5 mm
Tool – Progressive tool L+R,
Tool size – 1900 x 900 x 520mm
Material – S420MC
Thickness – 3 mm

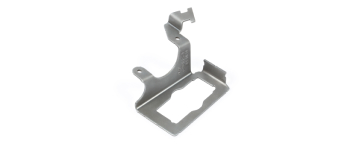

Tool – Progressive + Manual operating 1 station
Tool size –
- Progressive 2000 x 800 x 480mm
- Manual operating 450 x 400 x 380mm

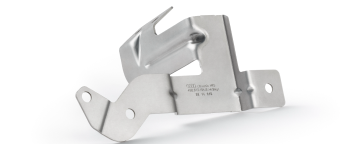

Material – Aluminum
Thickness – 2 mm
Tool –
- Contour cutting
- Manual operating 3 stations
- Holes piercing 2 stations

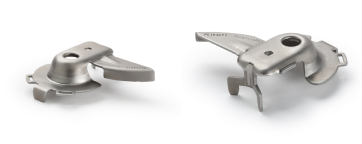

Material – CR330Y590T-DP(Dual-phase steel)
Thickness – 2 mm
Tool – Progressive tool L+R,
Tool size – 2310 x 1130 x 650mm
20 steps in tool
Precise Collar forming (D+0,05)
Material – S500
Thickness – 4 mm

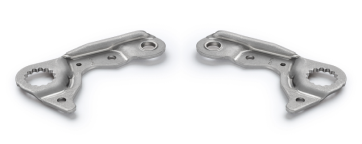

Tool – Progressive tool, L+R
Tool size – 2250 x 1130 x 650mm
Precise collar forming around hole, precise shaving of „star“ shape.

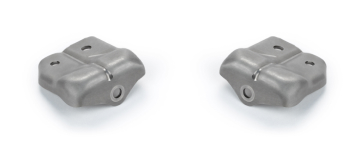

Material – S500MC
Thickness – 3.5 mm
Tool –Progressive tool L+R
Tool size – 2250 x 1100 x 600mm
CAM piercing and calibration in tool
Material – S700
Thickness – 2 mm
Tool – Progressive tool
Tool size – 2300 x 1130 x 650mm
